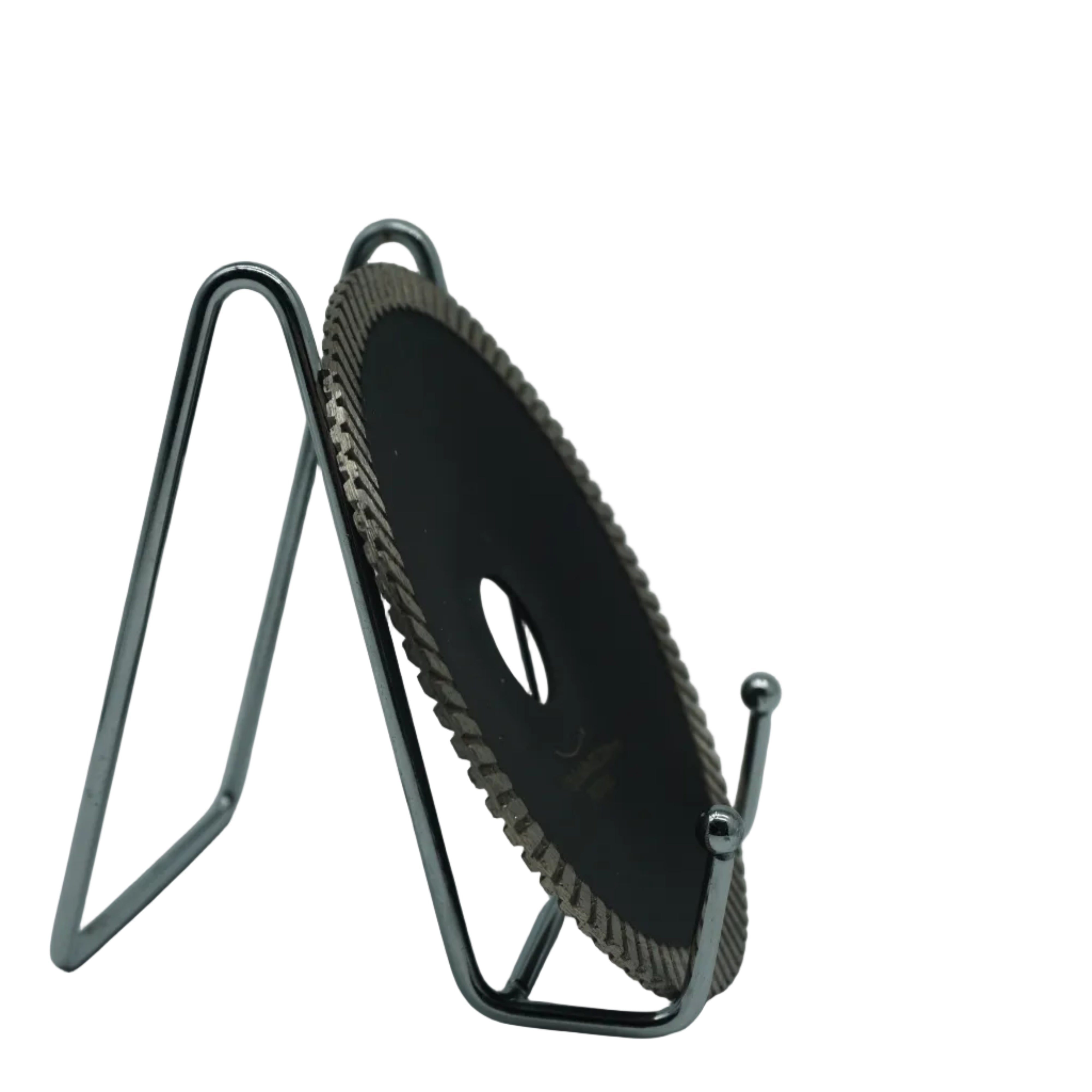

125mm Concave Segmented Diamond Saw Blade – General Purpose
Fast Cutting for Stone, Concrete & Masonry
The 125mm Concave Segmented Diamond Saw Blade is a general-purpose cutting blade designed for fast and efficient cutting of hard materials. Its concave profile and segmented diamond cutting edge make it suitable for a range of stone, masonry and construction applications.
The blade features a durable steel body with laser-welded diamond segments, providing reliable cutting performance and extended service life when used correctly.
Product Specifications
- Product Type: Concave Segmented Diamond Saw Blade
- Diameter: 125mm / 5"
- Segment Height: 8mm
- Segment Thickness: 2.4mm
- Arbor Hole: 22.23mm
- Construction: Laser-Welded Diamond Segments
- Blade Profile: Concave
- Operation: Wet
- Application: General-purpose cutting
- Colour: Black
Suitable Materials
Designed for cutting:
- Granite
- Marble
- Natural Stone
- Concrete
- Pavers
- Brick
- Concrete Blocks
- Masonry
- Stone Sink Cut-Outs
- Similar hard construction materials
Key Features
- 125mm (5") diameter for general-purpose cutting applications.
- Concave blade profile for controlled cutting and shaping.
- Segmented diamond cutting edge provides fast material removal.
- 8mm segment height for durability and extended cutting performance.
- 2.4mm segment thickness provides a balance between cutting speed and stability.
- 22.23mm arbor hole for compatible equipment.
- Laser-welded segments provide secure segment attachment and durability.
- Suitable for wet cutting applications.
- Designed for professional stone, masonry and construction work.
Applications
Ideal for:
- Granite cutting
- Marble cutting
- Stone fabrication
- Concrete cutting
- Paver cutting
- Brick and block cutting
- Masonry work
- Sink cut-outs
- General-purpose construction cutting
Safety Disclaimer
WARNING: This is a high-speed diamond cutting blade. Use only with compatible equipment and follow the equipment manufacturer's operating instructions.
Always wear appropriate eye, hearing, respiratory and hand protection. Cutting stone, concrete and masonry can generate hazardous dust and flying particles. Use suitable wet cutting, dust extraction and ventilation where required.
Inspect the blade, segments and arbor hole before each use. Do not use a blade that is cracked, damaged or excessively worn. Ensure the blade is correctly and securely fitted before operation and never exceed the maximum operating speed specified by the blade or equipment manufacturer.
When using wet cutting, ensure the equipment is suitable for wet operation and that electrical connections are protected appropriately. Keep hands and body away from the rotating blade and follow all applicable workplace and equipment safety requirements.
