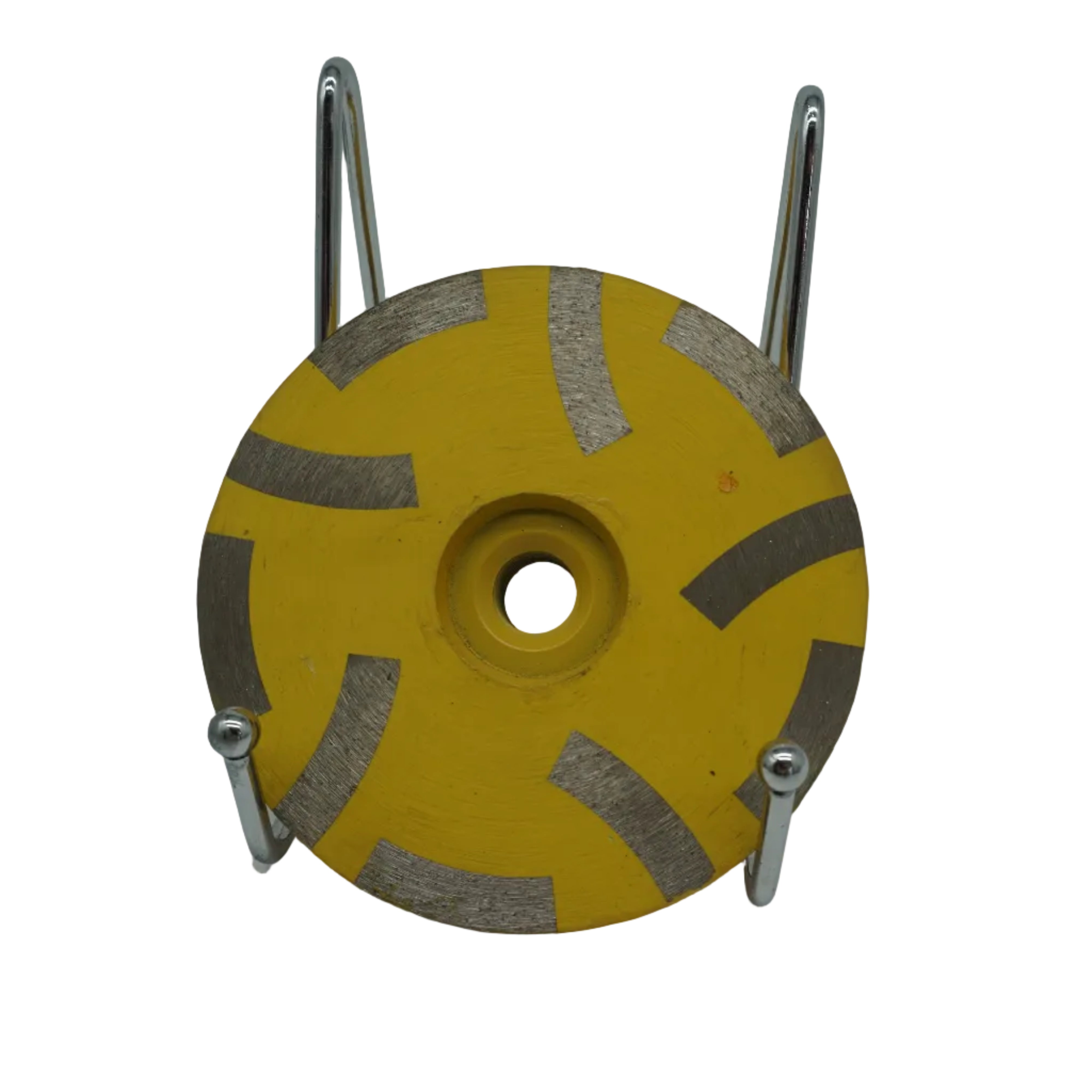

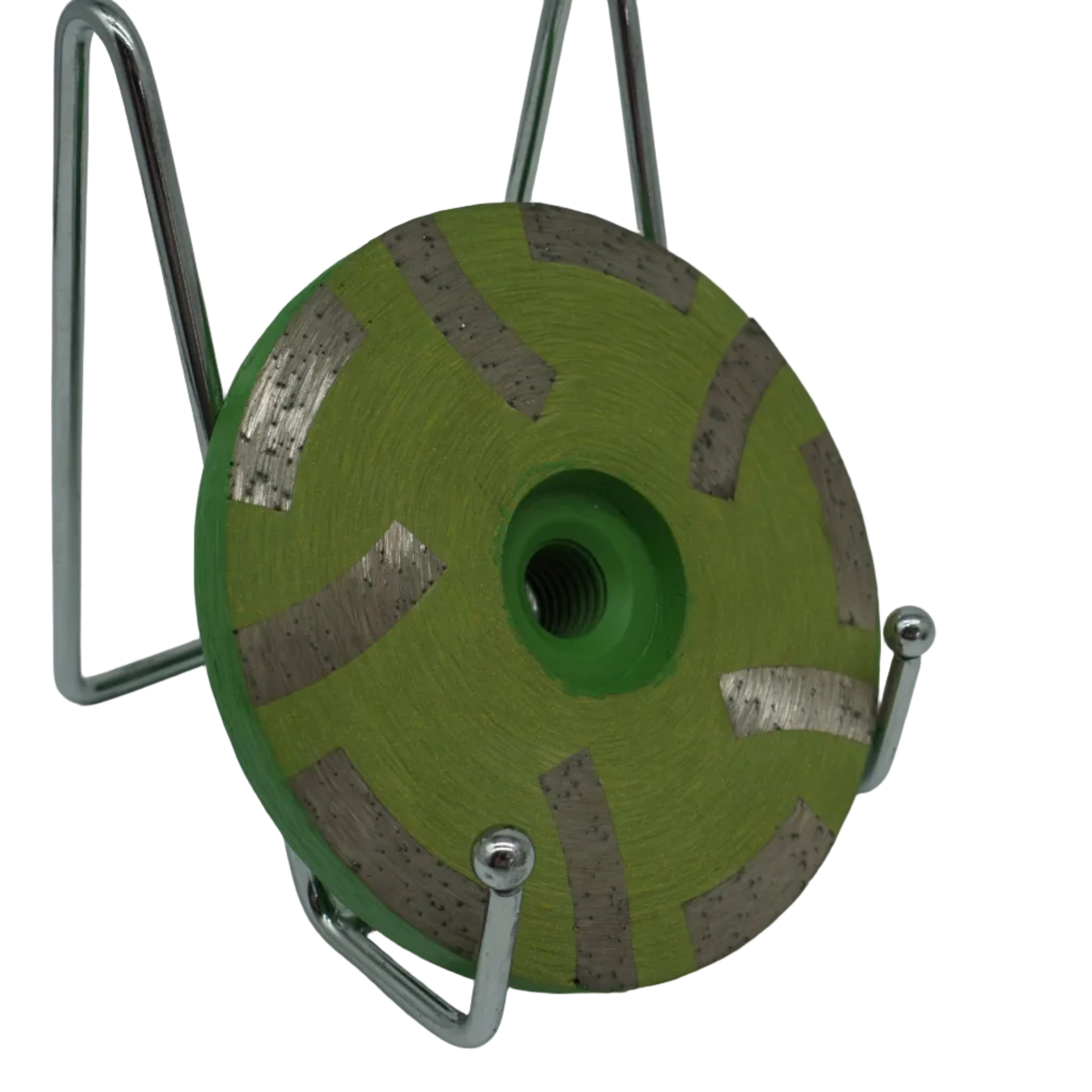

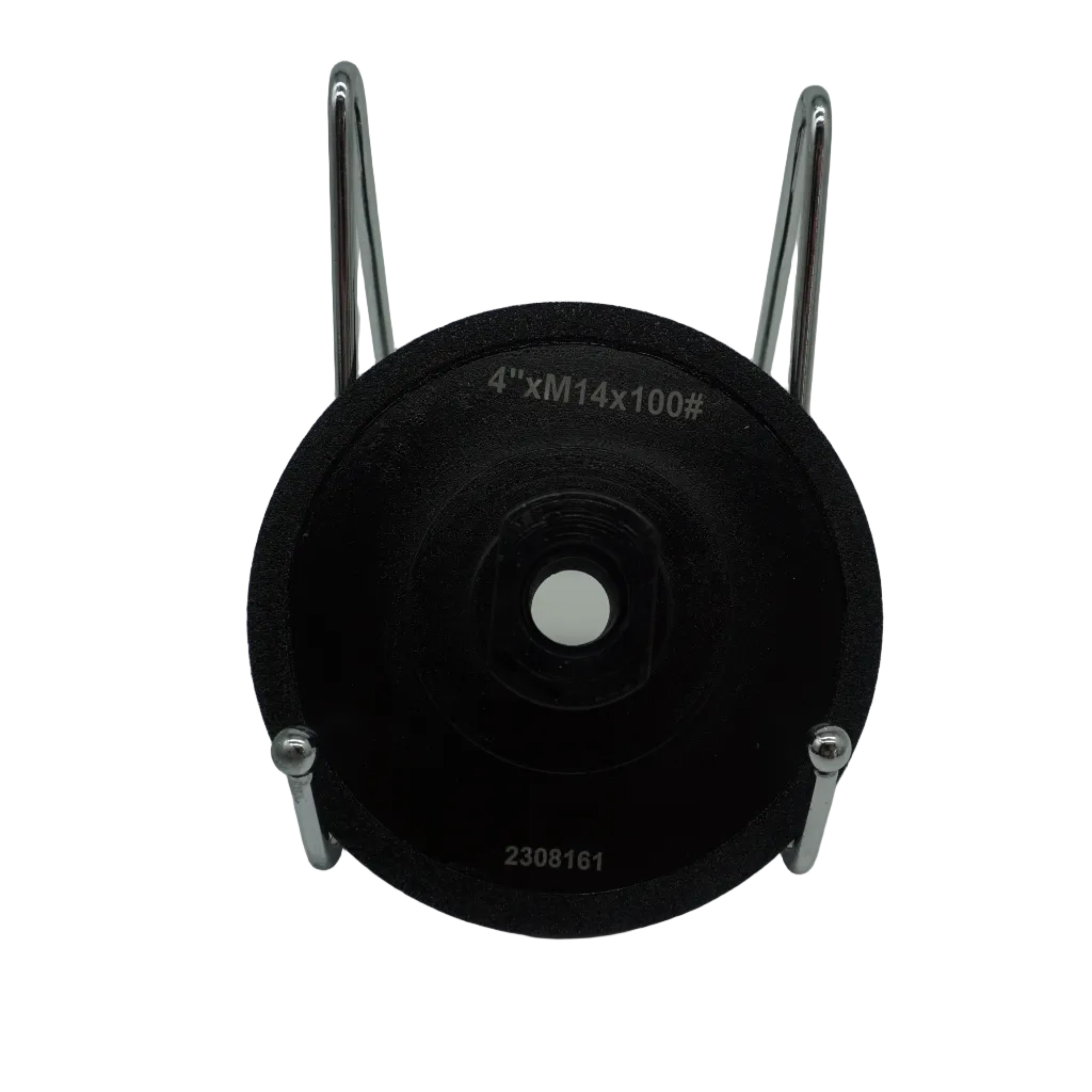

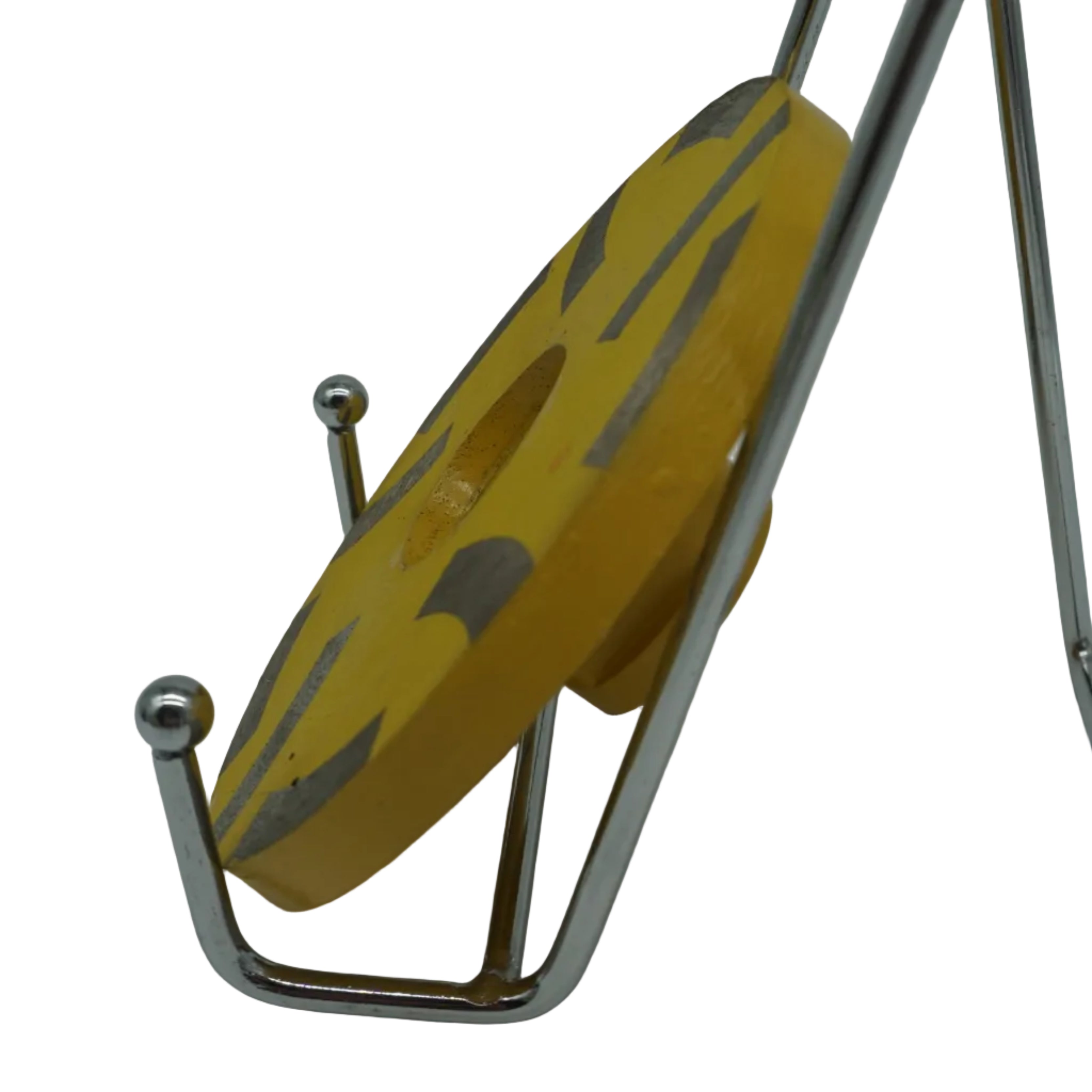

Diamond Resin-Filled Cup Grinding Wheel – M14

Diamond Resin-Filled Cup Grinding Wheel – M14

Professional Resin-Bonded Diamond Grinding Wheel for Granite, Marble, Stone, Quartz & Tiles

Designed for smooth and controlled grinding, this 4-inch / 100mm Resin-Filled Diamond Cup Wheel features 12 diamond segments embedded in a resin bond. The resin-filled design provides a smoother grinding action and helps reduce the risk of damaging delicate stone surfaces.

Suitable for a wide range of materials including granite, marble, quartz, engineered stone, natural stone, ceramic tiles, and other hard surfaces.

Key Features

• 12 Diamond Segments: Provides efficient and controlled material removal.
• Resin-Bonded Diamond: Designed for smoother grinding and improved surface control.

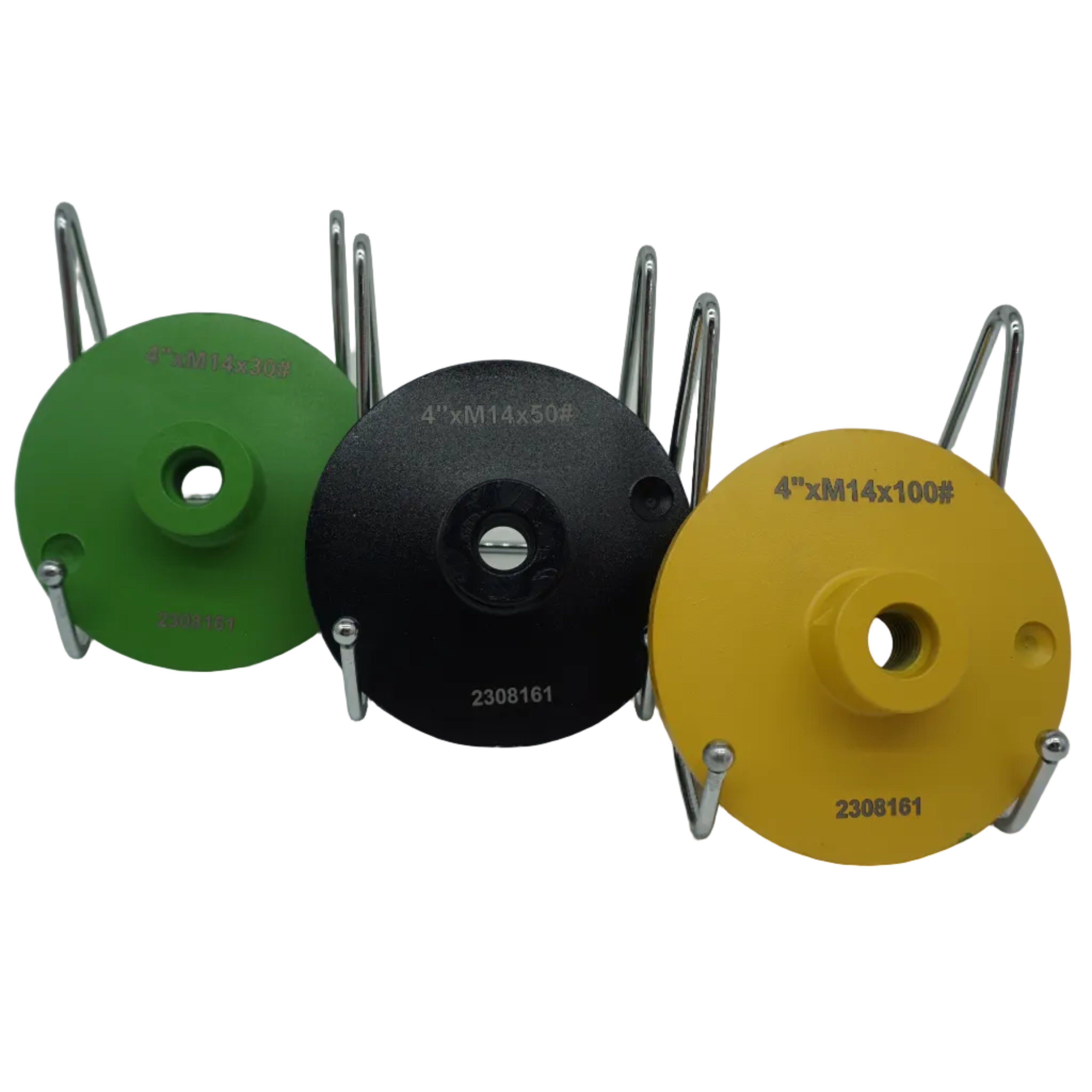

• Multiple Grit Options: Available in 30, 50, 80 and 100 grit to suit different grinding applications.
• M14 Thread: Designed for compatible M14 angle grinders and polishing machines.
• 4-Inch / 100mm Diameter: Compact size suitable for edge and surface grinding.
• 5mm Segment Thickness: Provides durable performance for demanding grinding applications.
• Curved & Flat Edge Grinding: Suitable for shaping and smoothing curved, flat, and beveled stone edges.
• Wet or Dry Use: Can be used for dry grinding or with water cooling where appropriate.
• Fast & Smooth Grinding: Resin-filled segments provide a more controlled grinding response while maintaining effective material removal.

Specifications

• Diameter: 4" / 100mm
• Thread: M14 Female Thread
• Segment Quantity: 12
• Segment Thickness: 5mm
• Bond Type: Resin Bonded
• Grit Options: 30 / 50 / 80 / 100 Grit
• Maximum Speed: 10,000 RPM
• Quantity: 1 Piece
• Compatible Tools: M14 Angle Grinders and Compatible Grinding Machines

Grit Selection

• 30 Grit: Coarse grinding and fast material removal, particularly suitable for hard granite and heavy stock removal.
• 50 Grit: General-purpose grinding and shaping of granite, marble, and stone.
• 100 Grit: Fine grinding and smoothing before further polishing or finishing.

Versatile Applications

Ideal for grinding and shaping:

• Granite benchtops, countertops, slabs and edges
• Marble benchtops, slabs and surfaces
• Quartz and engineered stone
• Natural stone
• Ceramic and stone tiles
• Concrete and masonry surfaces
• Stone sink cut-outs
• Curved and beveled stone edges
• Flat stone surfaces
• Stone profiles and angles
• General stone fabrication and surface preparation

Wet or Dry Grinding

Suitable for wet or dry grinding. Using water where appropriate can help reduce dust, control heat, and improve grinding performance and diamond segment life.

Safety & Compatibility

Ensure the M14 thread is compatible with your angle grinder or grinding machine before use. Do not exceed the maximum rated speed of 10,000 RPM.

Always use appropriate eye protection, hearing protection, respiratory protection, gloves, and other recommended safety equipment when operating an angle grinder.

Sold separately, Excluding full set - includes 3 Grinding Wheels total.
