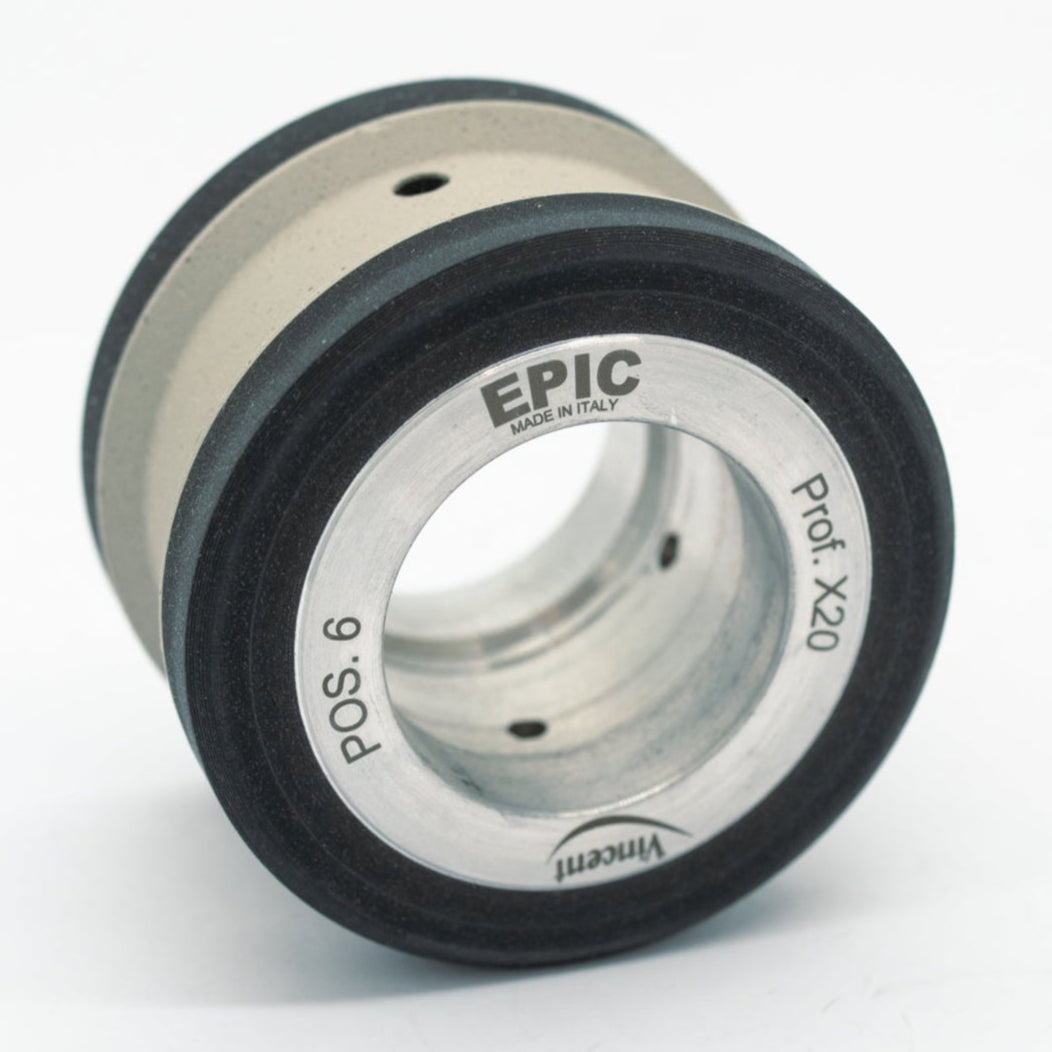

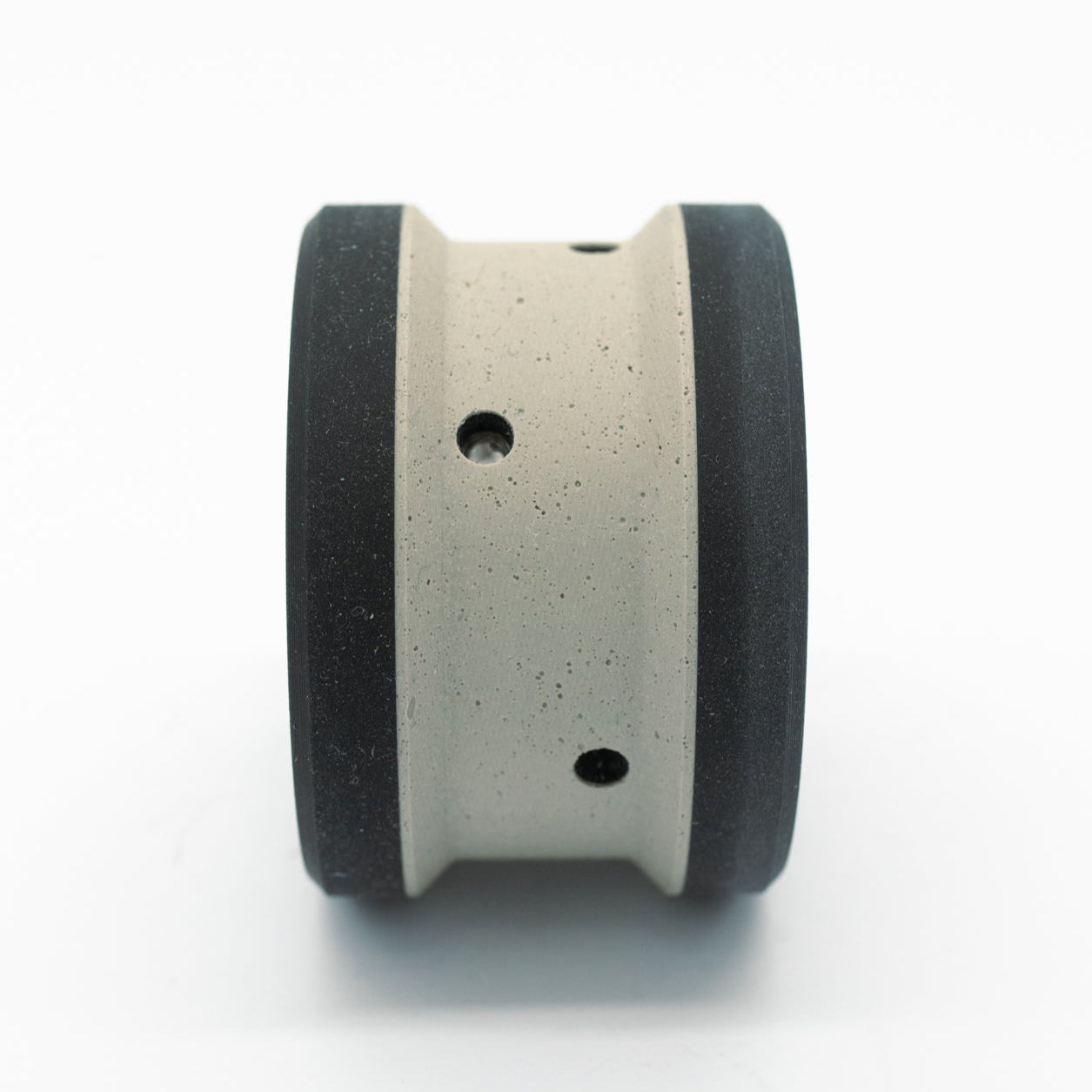

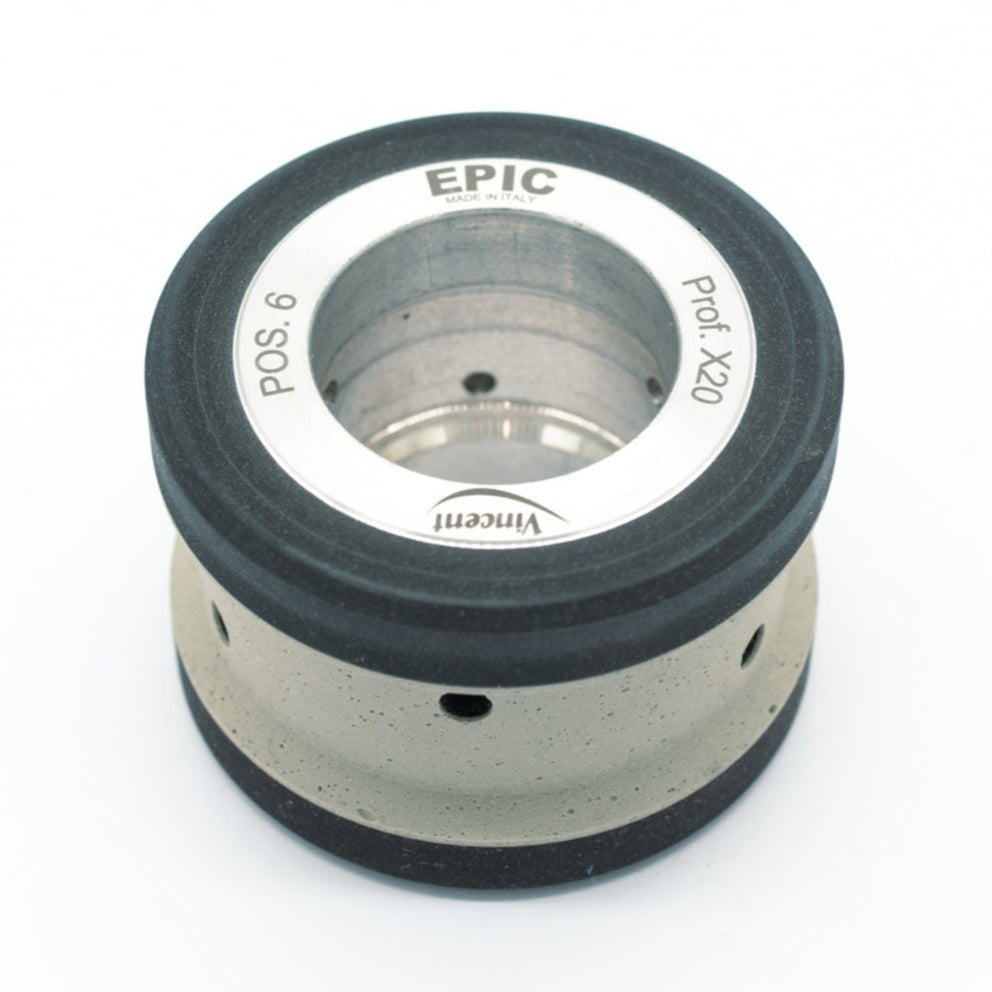

VINCENT - Profile 6 - EPIC Polishing Wheel - ARIS Profile X 20
VINCENT - Profile 6 - EPIC Profiling Wheel - Profile X 20
Vincent's EPIC HS3 CNC profiling wheels represent a significant advancement in stone fabrication, offering ultra-high-speed performance and enhanced tool longevity. These tools are engineered to meet the demanding needs of modern CNC machining, providing fabricators with efficient and precise solutions for profiling natural stone, quartz agglomerate, and ceramics.
⚙️ Tool Design and Features
-
Innovative Geometry: The EPIC HS3 profiling wheels feature inclined slots that ensure constant contact with the slab, minimizing vibrations and reducing the risk of chipping. This design contributes to a superior finish and extended tool life.
-
Versatility: With a 1/2" gas connection, these tools are compatible with various CNC machines, allowing for precise profiling of both internal and external edges, as well as sink cutouts.
-
Enhanced Durability: The consistent hardness of the bond across the tool's surface ensures uniform wear and a longer lifespan, even under high-speed operations.
-
Ultra High-Speed Capability: Thanks to advanced bonding systems and manufacturing processes, the EPIC HS3 wheels can operate at feed rates up to 9500 mm/min, significantly increasing productivity without compromising quality.
🛠️ Application Guidelines
To achieve optimal performance with Vincent's EPIC HS3 profiling wheels:
-
Material Consideration: Adjust feed rates based on the hardness and composition of the material being processed. Harder materials may require slower feed rates to prevent tool wear and ensure a quality finish.
-
Machine Calibration: Ensure that your CNC machine is calibrated to handle the recommended spindle speeds and feed rates. Proper calibration is crucial for maintaining tool integrity and achieving desired results.
-
Regular Maintenance: Regularly inspect and maintain both the profiling wheels and CNC machine to ensure consistent performance and to extend the lifespan of the tools.
🔧 Performance Specifications
Vincent's EPIC HS3 slotted profiling wheels are designed to operate at varying feed rates depending on the specific application and material being processed. The following table outlines the recommended feed rates and spindle speeds for different stock removal depths:
| Position | Tool Type | Feed Rate (mm/min) | Stock Removal Depth | Spindle Speed (RPM) |
|---|---|---|---|---|
| 0 | Segmented Profiling Wheel | Up to 4000 | Up to 0.5 mm | 4800–5500 |
| 1 | EPIC Slotted Profiling Wheel | Up to 9500 | Up to 0.3 mm | 4800–5500 |
| 2 | EPIC Slotted Profiling Wheel | Up to 9500 | Up to 0.2 mm | 4800–5500 |
| 3 | EPIC Slotted Profiling Wheel | Up to 2500 | Up to 0.1 mm | 4800–4800 |
| 4 | WINNER Polishing Wheel | Up to 1500 | Zero | 2700 |
Note: The feed rates and spindle speeds are indicative and may vary based on specific machine capabilities and material characteristics.
By integrating Vincent's EPIC HS3 profiling wheels into your CNC operations, you can enhance efficiency, achieve superior finishes, and extend tool life, thereby optimizing your stone fabrication processes.
Manufacturer Background
Vincents, established in 1974 in Thiene, Italy, specializes in producing diamond tools for cutting, grinding, and polishing stone, natural stone, quartz agglomerate, glass, and ceramic tiles. In 1994, the company was acquired by the Austrian Swarovski family and integrated into the TYROLIT group, expanding its presence in the stone, ceramics, and glass tooling markets
